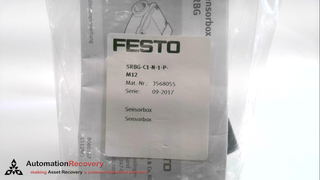

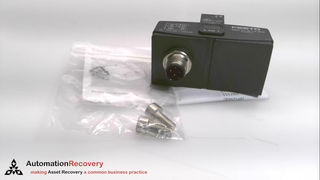

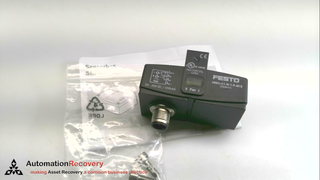

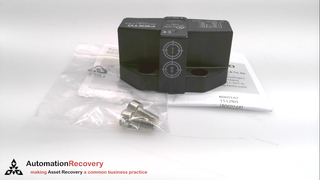

FESTO SRBG-C1-N-1-P-M12, SENSORBOX, ANGULAR, 3568055

Manufactured By: FESTO

Manufacture Part Number: SRBG-C1-N-1-P-M12

Product Number: ARP00122044

PRODUCT OVERVIEW:

FESTO SRBG-C1-N-1-P-M12

SENSORBOX

DESIGN: ANGULAR

MEASURING PRINCIPLE: INDUCTIVE

SWITCH OUTPUT: PNP

SWITCHING ELEMENT FUNCTION: NORMALLY OPEN CONTACT

MAX. SWITCHING FREQUENCY: 500 Hz

MAX. OUTPUT CURRENT DC: 100 mA

VOLTAGE DROP: <=3 V

RESIDUAL CURRENT: 0...0.5 mA

SHORT CIRCUIT STRENGTH: PULSING

OPERATING VOLTAGE RANGE DC: 10 ... 30 V

IDLE CURRENT: <=25 mA

POLARITY PROTECTED: FOR ALL ELECTRICAL CONNECTIONS

ELECTRICAL INPUT CONNECTION: PLUG M12x1 4-PIN

ASSEMBLY POSITION: ANY

MATERIAL HOUSING: PBT

MATERIAL SCREWS: HIGH ALLOY STEEL, NON-CORROSIVE

READY STATUS DISPLAY: GREEN LED

OPERATING STATUS DISPLAY: YELLOW LED

ALT ID 3568055

PURCHASE OPTIONS:

Factory New - Factory Packaging

This is a new item in its original package, the package may have been opened for inspection and/or other purposes.

Your Price: $135.99

Quantity In Stock: 2

Qty:

Add To Cart
