SCA50-SR-4096-741506,ENCODER,FREQUENCY RESPONSE; 300 KHZ MAX

Manufactured By: SCANCON

Manufacture Part Number: SCA50-SR-4096-741506

Product Number: ARP00115996

PRODUCT OVERVIEW:

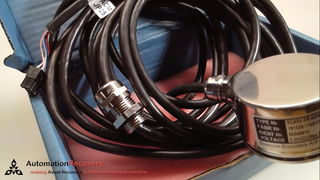

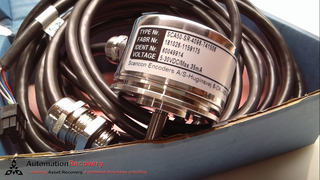

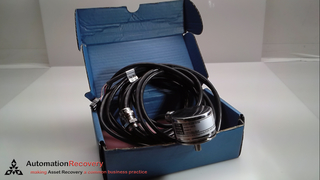

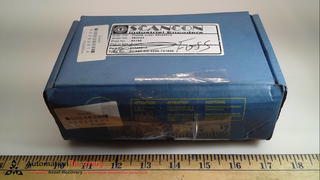

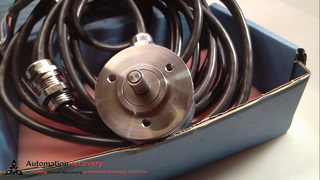

SCANCON SCA50-SR-4096-741506

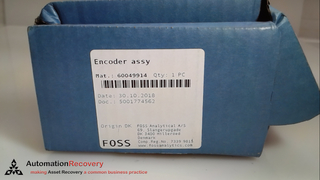

60049914

ENCODER

SUPPLY VOLTAGE; 4.5 Vdc min. - 30 Vdc max.

OUTPUT VOLTAGE; LOW; 500 mV max at 10 mA/HIGH; (V - 0,6) at -10mA (V - 1,3) at -25mA

OUTPUT CURRENT; 30 mA max. load per output channel

FREQUENCY RESPONSE; 300 kHz max

WEIGHT; ENCODER; ˜235 gr(8,29 oz)/CABLE; 60 gr/meter(2,12 oz/meter)

OPERATING TEMP/STORAGE TEMP.; -40° - +85°C

SHOCK; 100 G/11 ms

VIBRATION; 10-2000Hz/10 G

HUMIDITY; 98% RH without condensation

CABLE; 9-PIN M23 - 8 LEADS(0,14 mm, 26 AWG)TWISTED PAIRS; SHIELDED

This product is currently out of stock.
