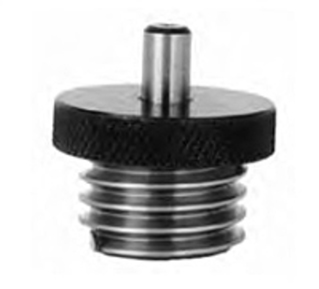

TE-CO 10314 THLG UNF 1/2-20

Manufactured By: TE-CO

Manufacture Part Number: 10314

Product Number: ARP00116309

PRODUCT OVERVIEW:

Technical Specifications:

Material:
– Body: 52100 Steel
– Collar:12L14 Steel
Black oxide finish on collar only
Two piece construction
Use to accurately measure the distance between two tapped holes in a workpiece
Shaft size is the same diameter on all gages to simplify calculation of the hole spread
– All diameters are concentric within .0002 T.I.R.
English:
– Thread Class: 3A
– Left-hand thread, helicoil, or other non-standard gages quoted upon request
Metric:
– Thread Class: 6G
– ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request

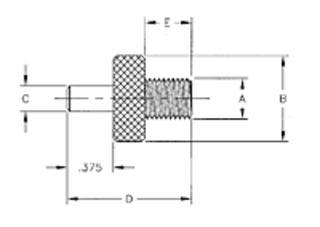

Thread A
1/2-20

Diameter B
0.875 in

Diameter C
0.250 in

D
1.000 in

E
0.375 in

Weight per 100 pcs.
6.00 lb

PURCHASE OPTIONS:

Manufacturer Direct

This is a new product that is shipped directly from the manufacturer in factory sealed packaging.

Your Price: $153.24

You Save $8.06 vs MSRP

Minimum Order Quantity: 1

Usually Ships Within 3 To 6 Weeks
